The Learning Analytics (LA) Suite is a collection of data components which make viewing and analysing school data more efficient. This guide will focus on locating data related to students and classes.
Logging On
The LA Suite can be accessed on any web browser by navigating to the address supplied by your school and using your school username and password to sign in.

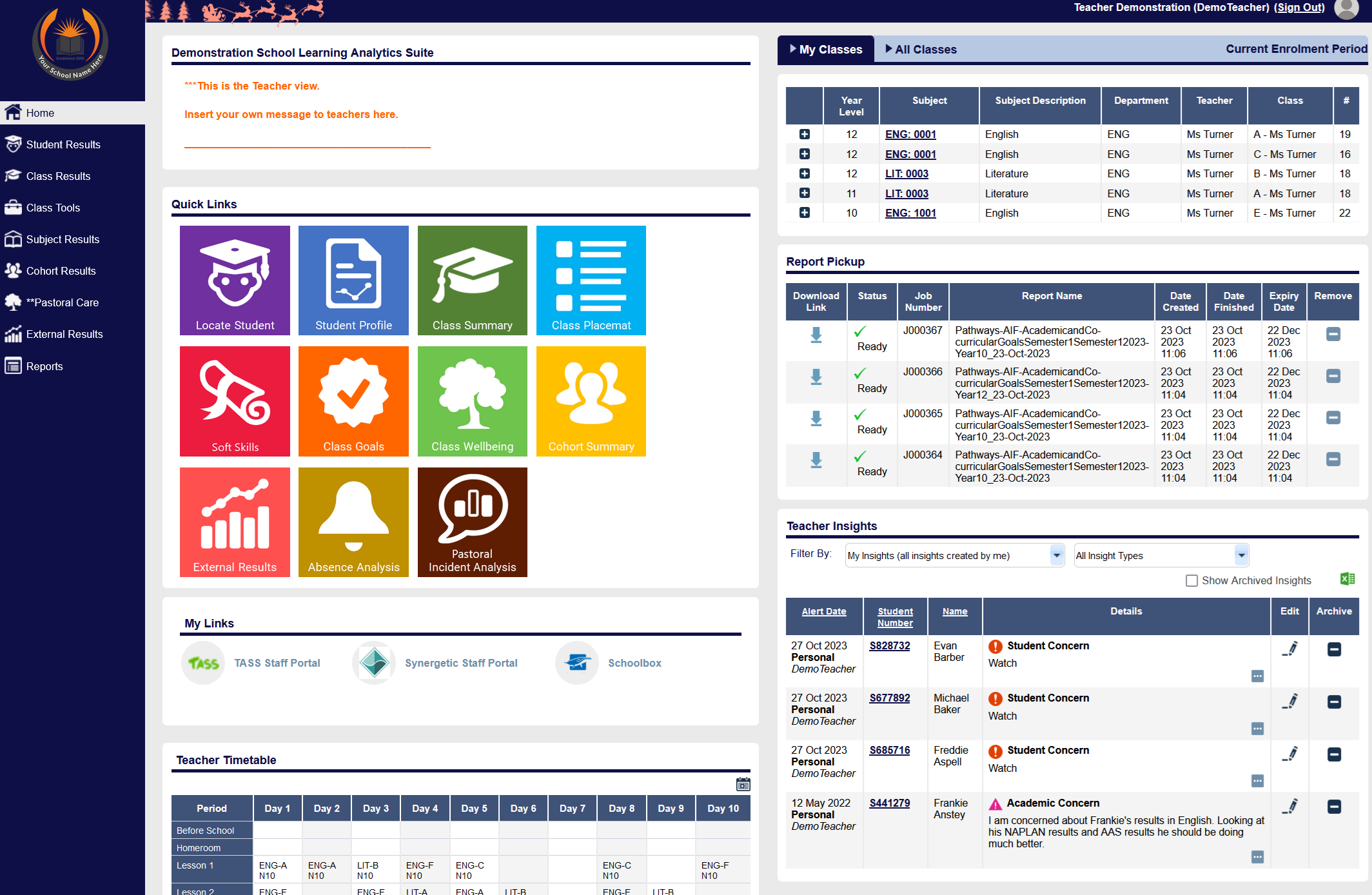

The Home screen displays 'Quick Links' to commonly accessed areas of the Suite, links to your classes, report collection area, outbound links to other systems used at your school, and perhaps your timetable (these are dependent on each school's preferences).
Main Menu
The main menu is located on the left-hand side of the screen below the school crest. From the main menu you will be able to access information about students, subjects and cohorts.
Student Results
You will use the Student Results area to find student specific data related to internal academic, pastoral, and external assessment performance.
To begin, click Student Results to expand the menu and then click School Results. Alternatively, you may use the Locate Student button from the list of Quick Link icons.
Student Results - School Results
Data related to the students’ internal school results (overall and criteria results) is accessed through School Results.

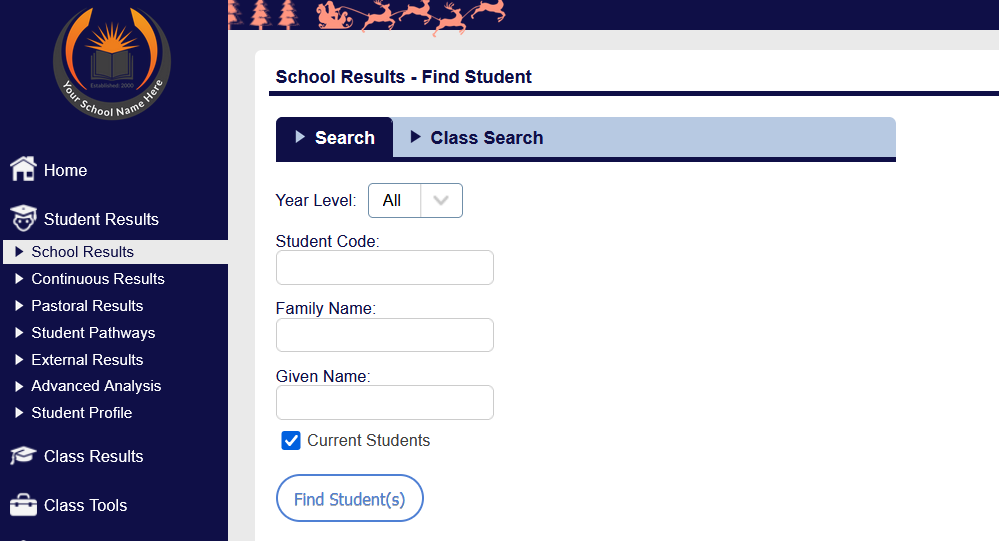

Use the Find Student component at the top of the screen and enter either a Student ID, Family Name, and / or Given Name. Click Find Students. If more than one student is found, click the green arrow corresponding to the correct student.
School Results - Academic Summary
The first data set displayed is the Academic Summary.

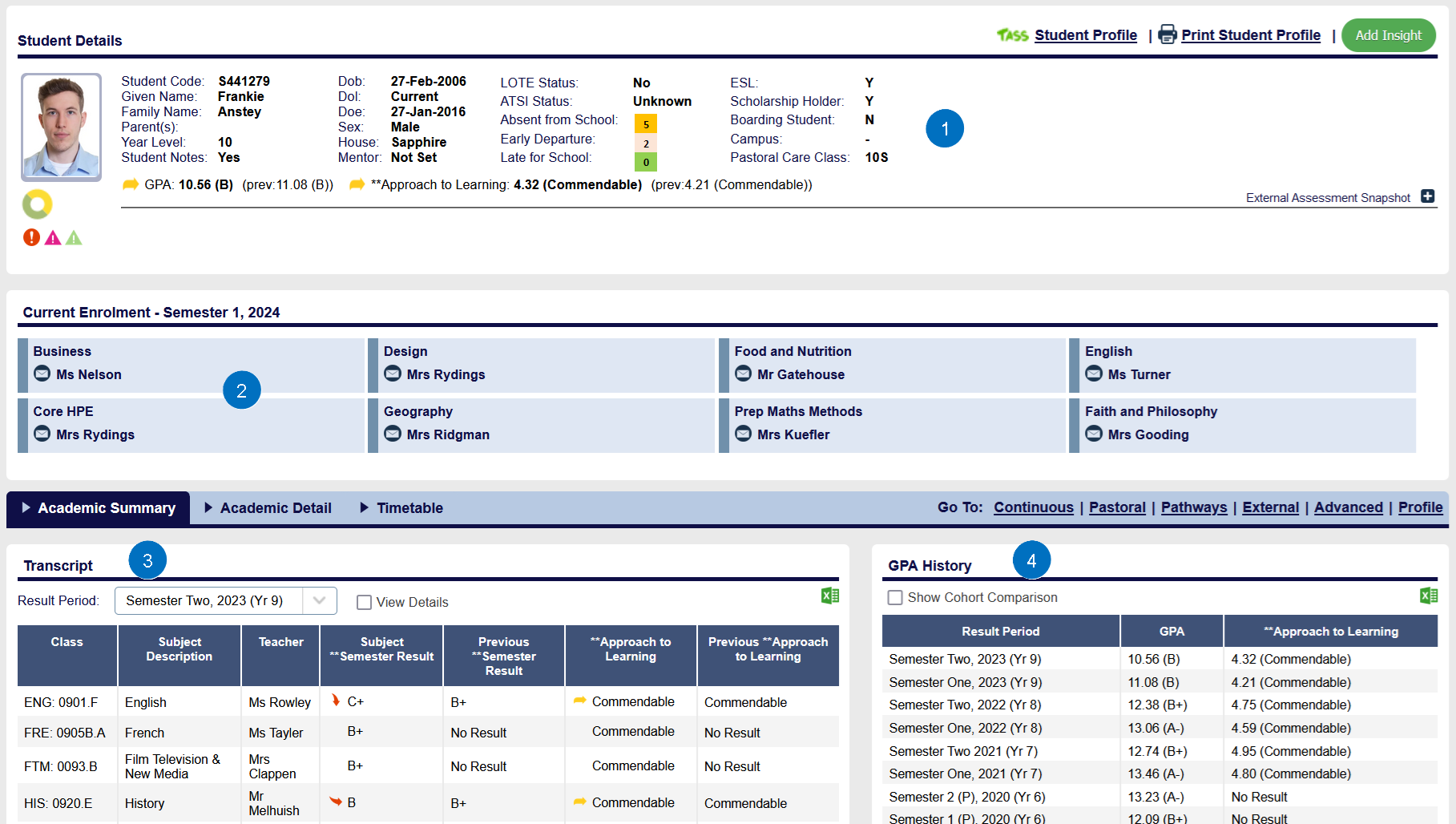

[1] The Student Details component displays personal data about the student such as Date of Entry (DoE), House, and LUI. This component also shows the latest available GPA and *Engagement results, as well as a summary of External Assessment results. You can click Print Student Profile to create a Student Profile in PDF format.
[2] The Current Enrolment component displays the student’s enrolment in the current period. If available, you can click on the subject to email the student’s teacher.
[3] The Transcript component displays the subject results (both academic and *engagement) for all available result periods. The result from the most recent period is displayed first. The arrow indicates how the subject result compares to the previous subject result.
[4] The GPA History component displays the student’s overall Grade Point Average (GPA) and overall *Engagement Average for the result period. Clicking Show Cohort Comparison will add the average GPA achieved by the cohort.
The last two components on the Academic Summary tab are the GPA History component and the *Engagement History component.

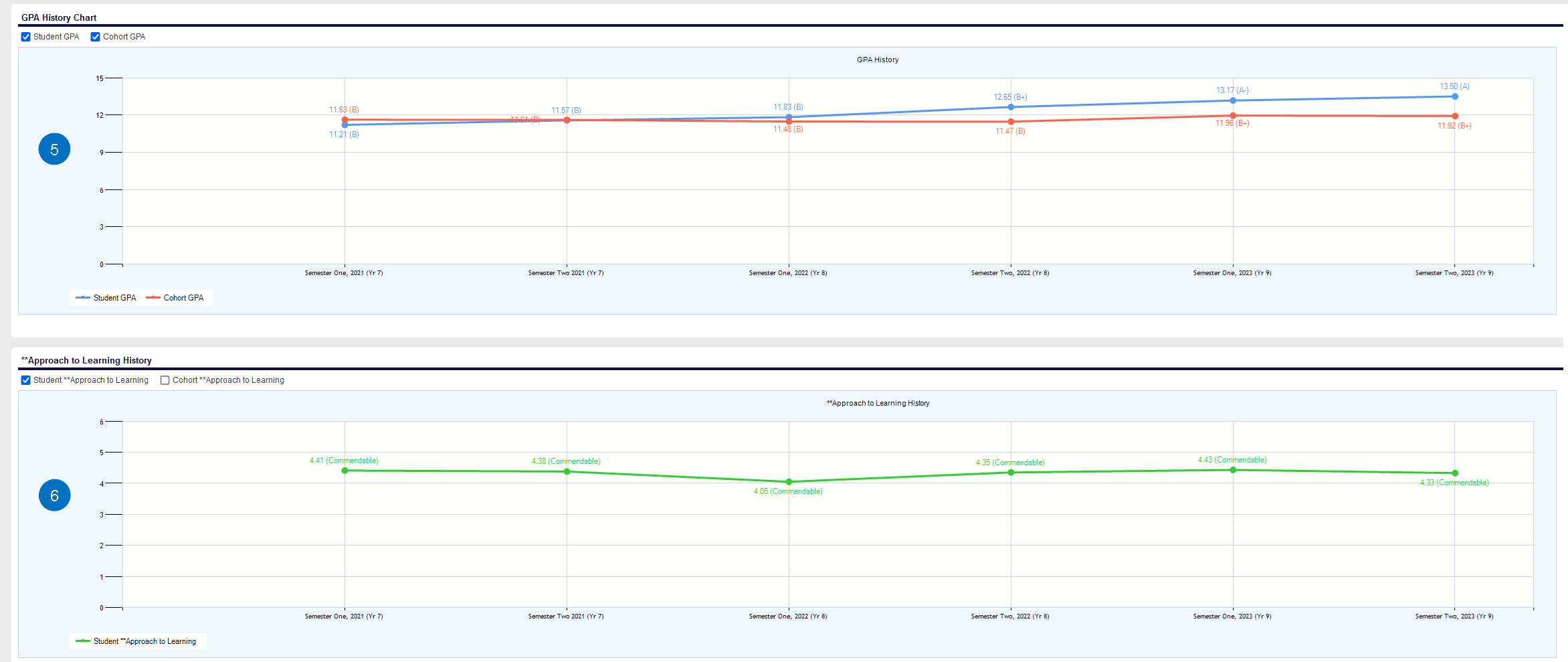

[5] The GPA History Chart displays the student’s overall GPA for all available result periods. Click Cohort GPA to overlay the average result for the cohort for each period.
[6] The *Engagement History Chart displays the student’s overall *Engagement for all available result periods. Click Cohort *Engagement to overlay the average result for the cohort.
Academic Detail tab
Use the blue menu bar below the Current Enrolment [2] to view the Academic Detail.
The Academic Detail section lets you explore student academic achievement in greater detail. Use this area to see how a student performed in a specific subject in a specific result period or over time.

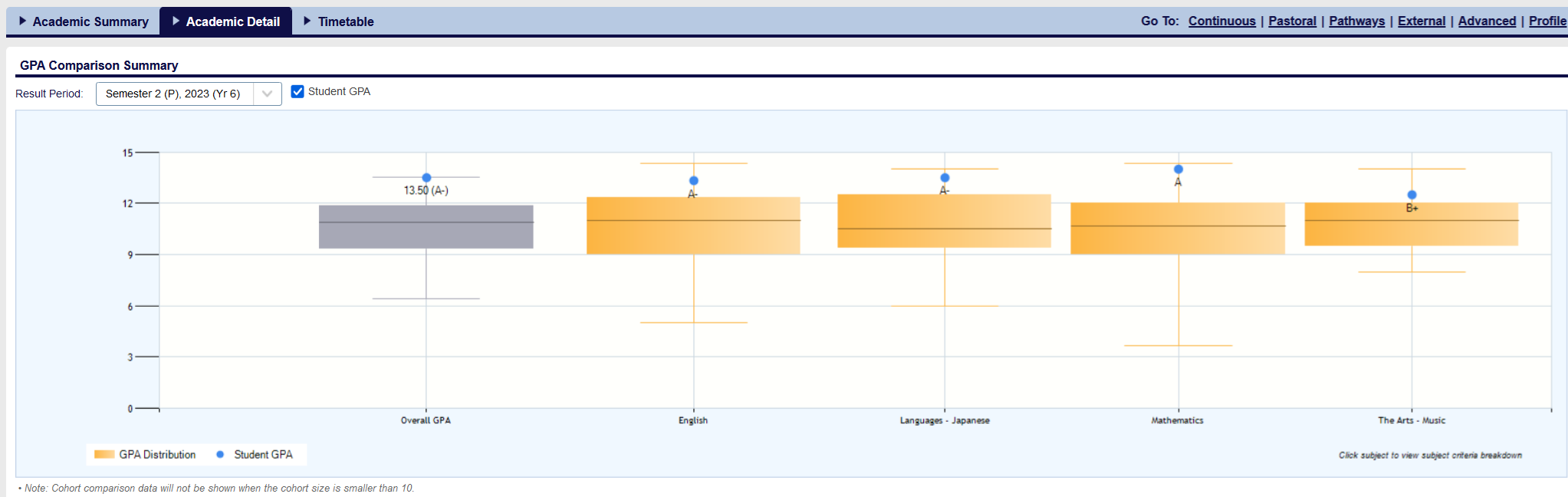

The GPA Comparison Summary Chart uses Box and Whisker Charts to allow you to see the academic performance of the selected student in each subject versus the cohort.
Box and Whisker (Box Plots) Charts
The Box and Whisker chart is commonly used in statistical analysis to show the distribution of a dataset. The outside bars (Min X and Max X) represent the minimum and maximum values. 25% of results fall below Q1 (the lower quartile) and 25% of results fall above Q3 (the higher quartile). The students result is represented by the blue dot.

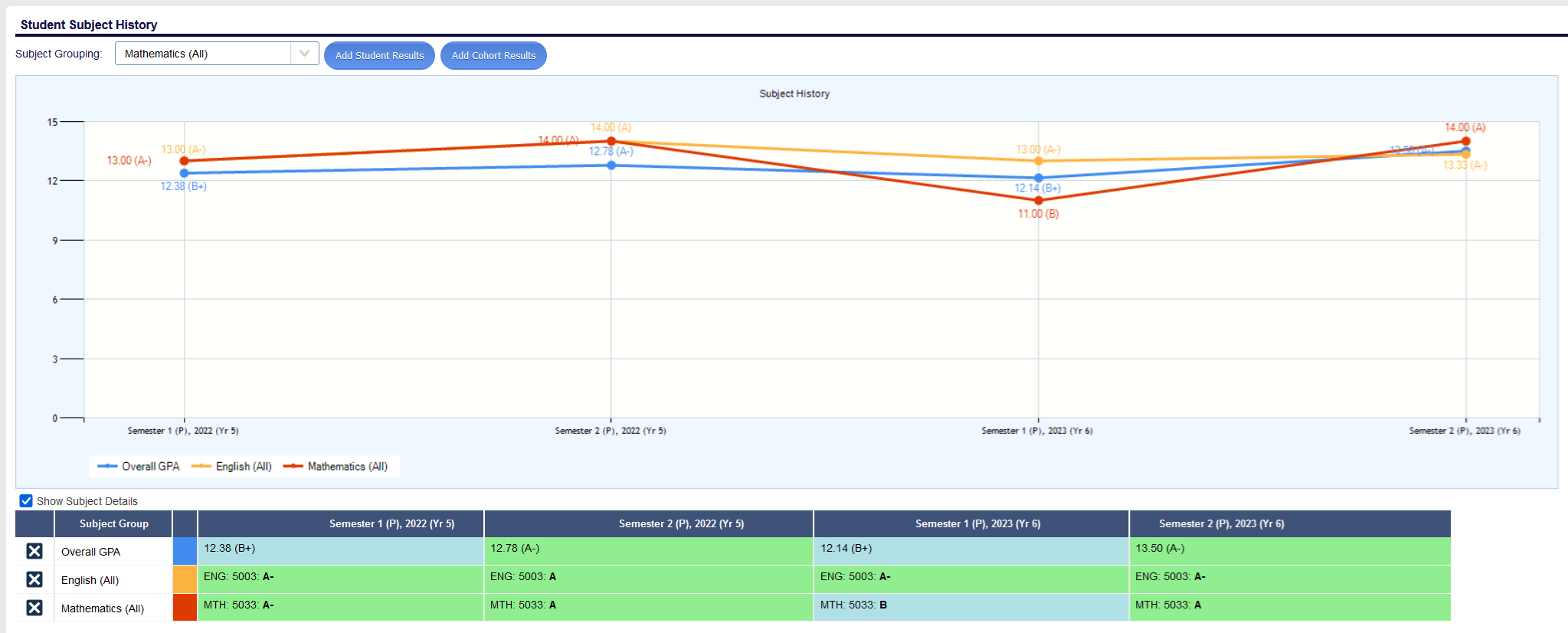

The Student Subject History Chart is also in the Academic Detail section. To view the student’s performance in a subject over time, select the subject from the Subject Grouping dropdown and click the plus button to the side.
A line showing the student’s academic performance in the selected subject will be added to the chart. Multiple subjects can be added to the same chart.
To remove a subject from the chart, click the cross button located in the table below the chart.
Student Results - Pastoral Results
Data related to the student’s behaviour and pastoral performance is found in the Pastoral Results area.
This area can be selected through the Main Menu or by clicking the Go To Pastoral Results link on the blue menu bar.
If you are selecting from the Main Menu you will need to search for and select a student. If you are selecting from the blue menu bar the data for the current student will be displayed.
This section includes areas for Behaviour, Absences, Incidents, Activities, Goals, and Notes.
Behavior
[7] The *Engagement History Chart shows the student’s *Engagement result as it changes over time. *Engagement is an average of the results entered by all teachers for all individual behaviour results.

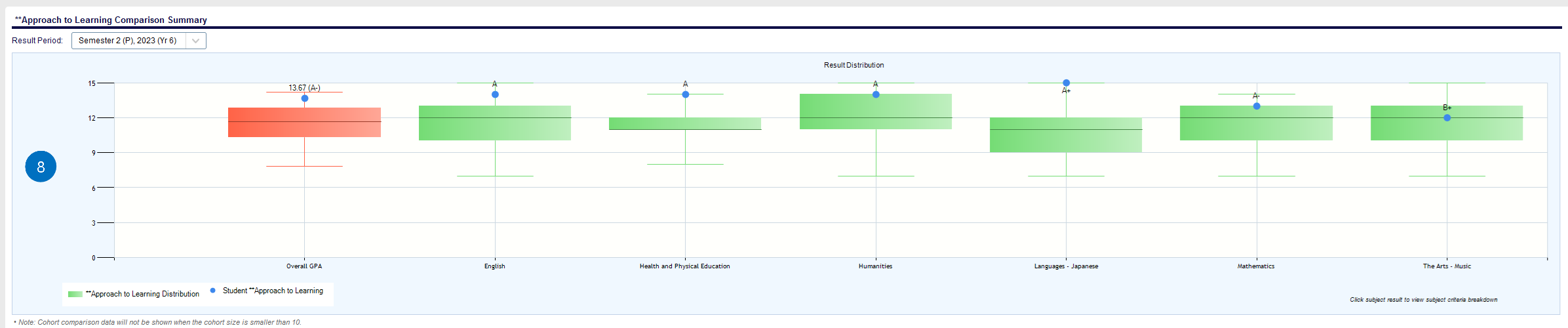

[8] The *Engagement Comparison Summary Chart uses Box and Whisker Charts to allow you to see the *Engagement results for the selected student in each subject versus the cohort.
[9] The Behaviour Analysis Chart shows the number of results a student has received for each behavioural criterion in the selected result period.
Absences

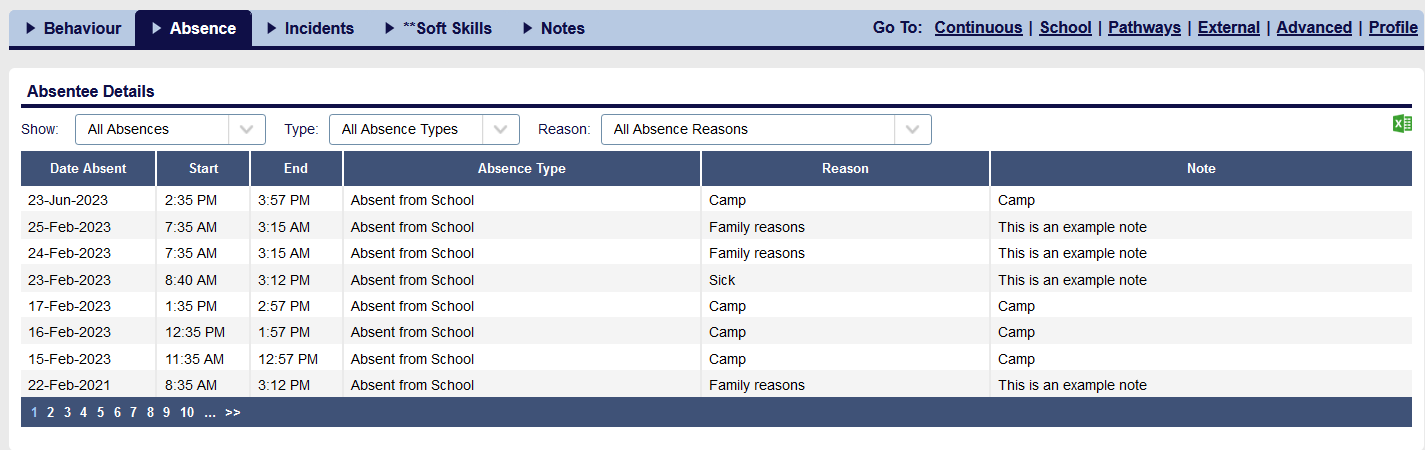

The Absence Details table lists the number and types of absences for the selected student. You may choose to show all absence types or select a specific category from the dropdown menu.
The Absence History chart displays the student’s absences and late arrivals over the past three years (broken down by month). The user may choose to display all absence types or a specific category.
Incidents

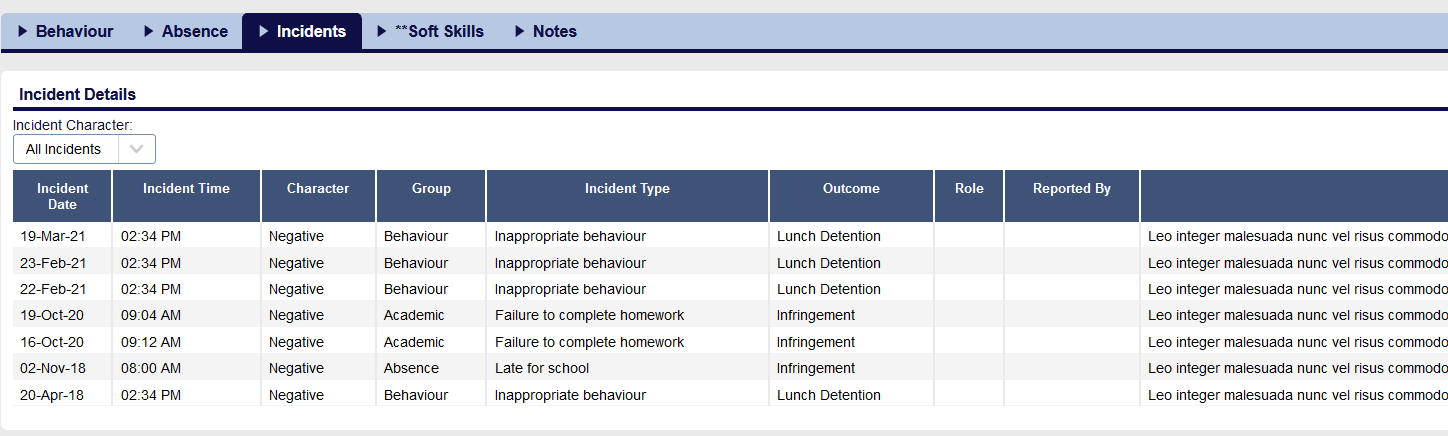

The Incident Details table lists the number of incidences for the student. The user may choose to show all incident types or select a specific category.
Incident History by Month charts the student’s incidences over the past three years (broken down by month). You may also choose to display just one specific calendar year or one specific category.
Incident History by Time charts the student’s incidences over the past three years (broken down by the time of day that the incident was recorded).
Goals/Pathways

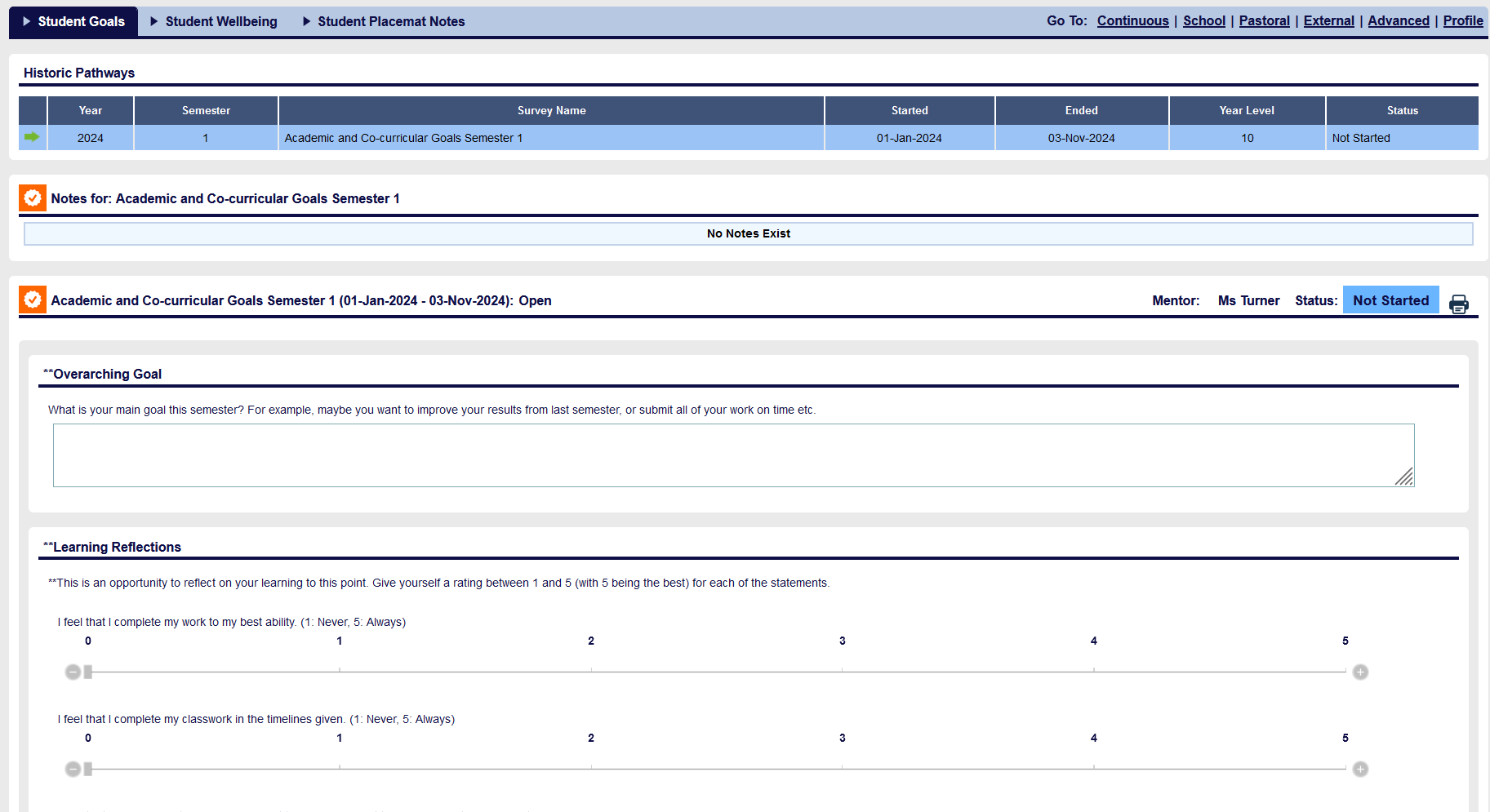

If the Goals feature is enabled, the student’s goals and strategies will be displayed in this area.
Student Results - External Results
Student results from external assessment items (from providers such as NAPLAN, ACER, ICAS, and AAS) are available in the External Results section.

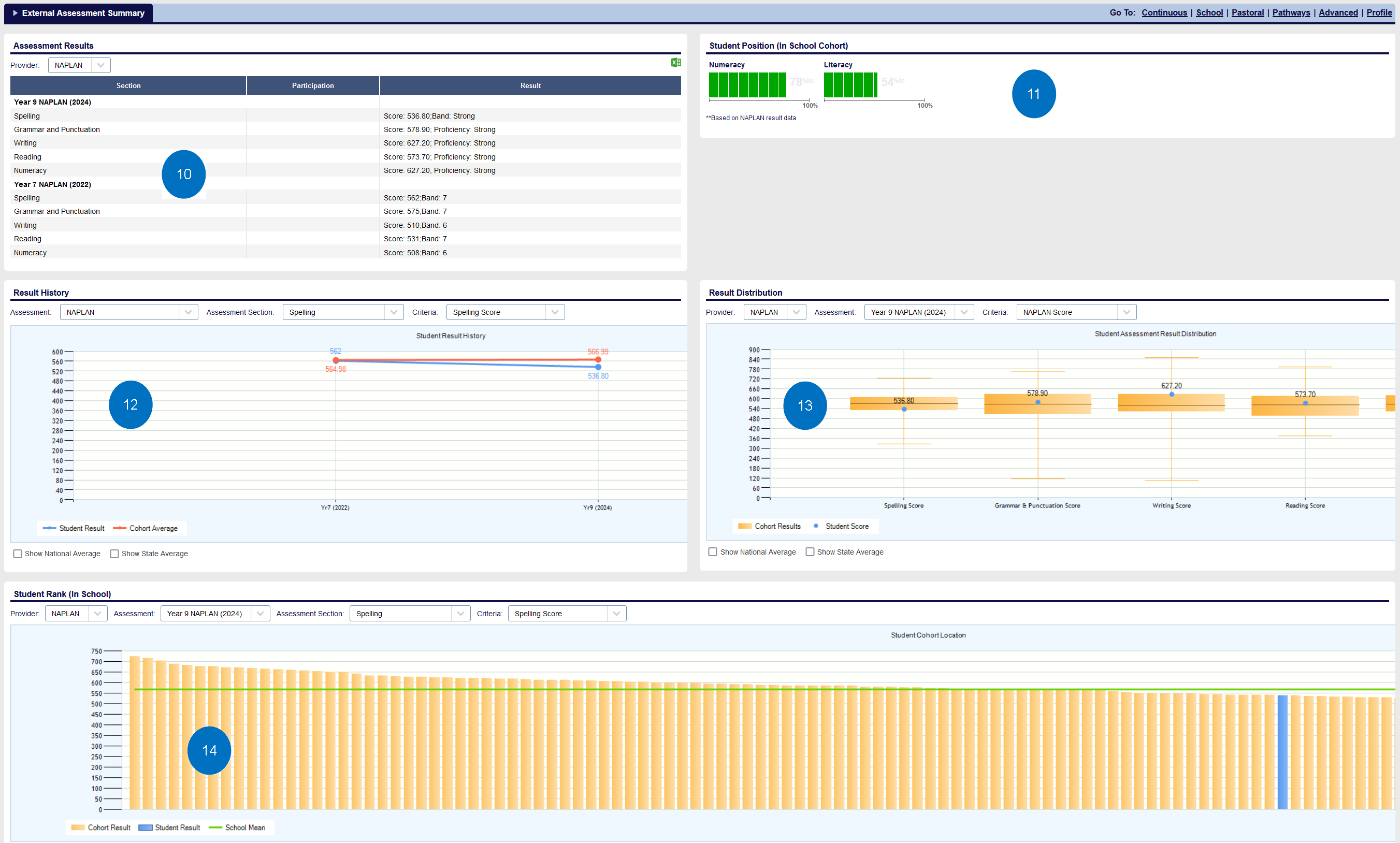

[10] The Assessment Results table allows you to view all available external results for the selected students. Move between assessment providers by selecting the provider from the dropdown menu.
[11] Student Position in School shows the student’s ranking in Literacy and Numeracy relative to their cohort. The ranking is calculated based on external assessment items as set up by the Learning LA Suite administrator.
[12] The Result History chart shows the student’s results for the selected assessment item over time. The student’s results are in blue, whilst the cohort’s average result is in red. Different assessment items and sections may be chosen using the dropdown fields.
[13] The Result Distribution chart uses Box and Whisker Charts to show the performance of the selected student in each section of the selected external assessment item.
[14] The Student Rank in School chart shows the student’s position relative to their cohort in the assessment item. The green line represents the average result. Hovering the mouse pointer over a result bar will show the student’s name and result.
Student Results - Student Profile

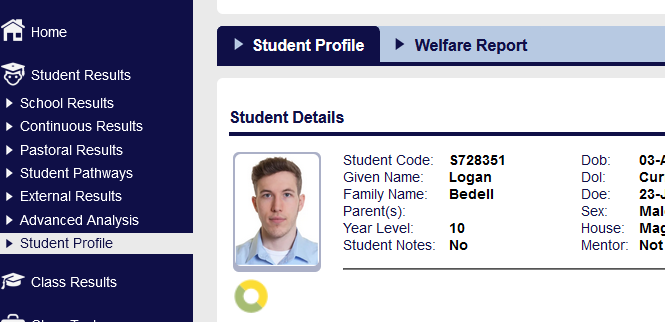

The data shown in the School Results, Pastoral Results and External Results areas can be combined onto a single report. This area may be accessed from the Main Menu or the blue menu bar.
Note there are many reports available in TrackOne, and your school has configured your Suite to display their preferred reports for viewing and printing.
There may be two reports available to you, each on it's own tab, and which focus on data from various places.
Class Results
You will use the Class Results area to find class specific data related to internal academic, pastoral, and external result assessment performance.
To begin, click Class Results to expand the menu and then click Class Summary. Alternatively, you may use the Class Summary button from the list of Quick Link icons, or the Subject Code link under the "My Classes" or "All Classes" tabs in the top right of your screen to go straight to the details for a specific class.
Class Results - Class Summary
The first data set displayed is the Class summary. Additional data may be added to the Class Summary table, including absentee information, external results, subject results and criteria results. Select the data type using the check boxes, then click the Apply Filters button.

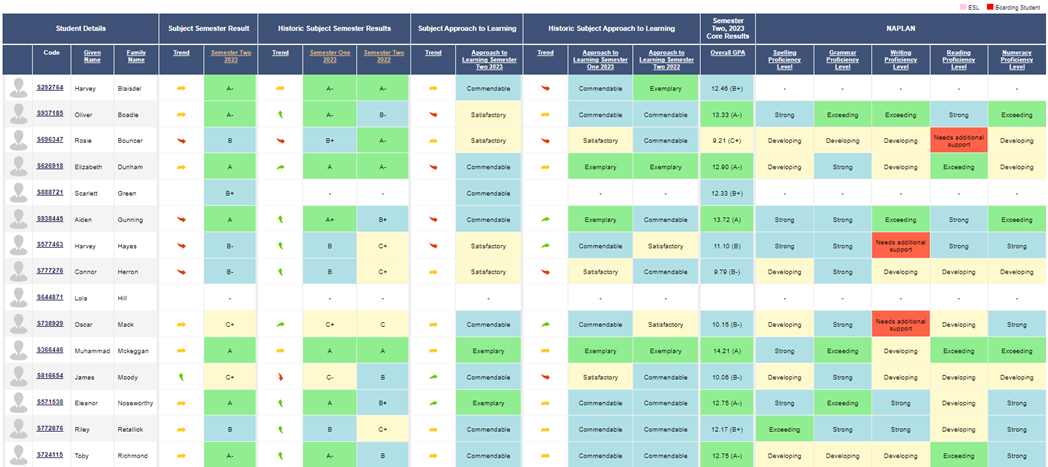

The Class Summary table displays three consecutive result periods of internal data and engagement data and the student’s current GPA. Trend arrows are displayed for the subject results and the engagement results. In the table below, you can see that external data (NAPLAN and AAS) has also been added to the view.
Data may be sorted by clicking on any of the underlined column headings (Given Name, Family Name, Trend etc), allowing you to explore trends in the subject results, trends in engagement and you can compare the students’ current subject performance to their overall GPA performance.
Sorting the table by one of the external data results (eg NAPLAN Writing Proficiency) will allow you to compare the students’ performance in class to their performance on external assessments.
Focus Students

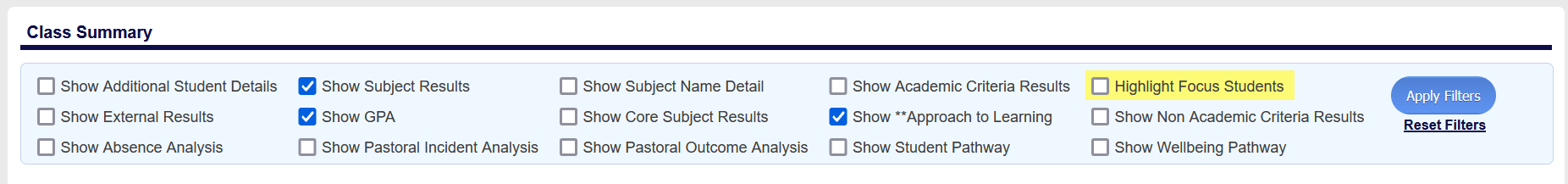

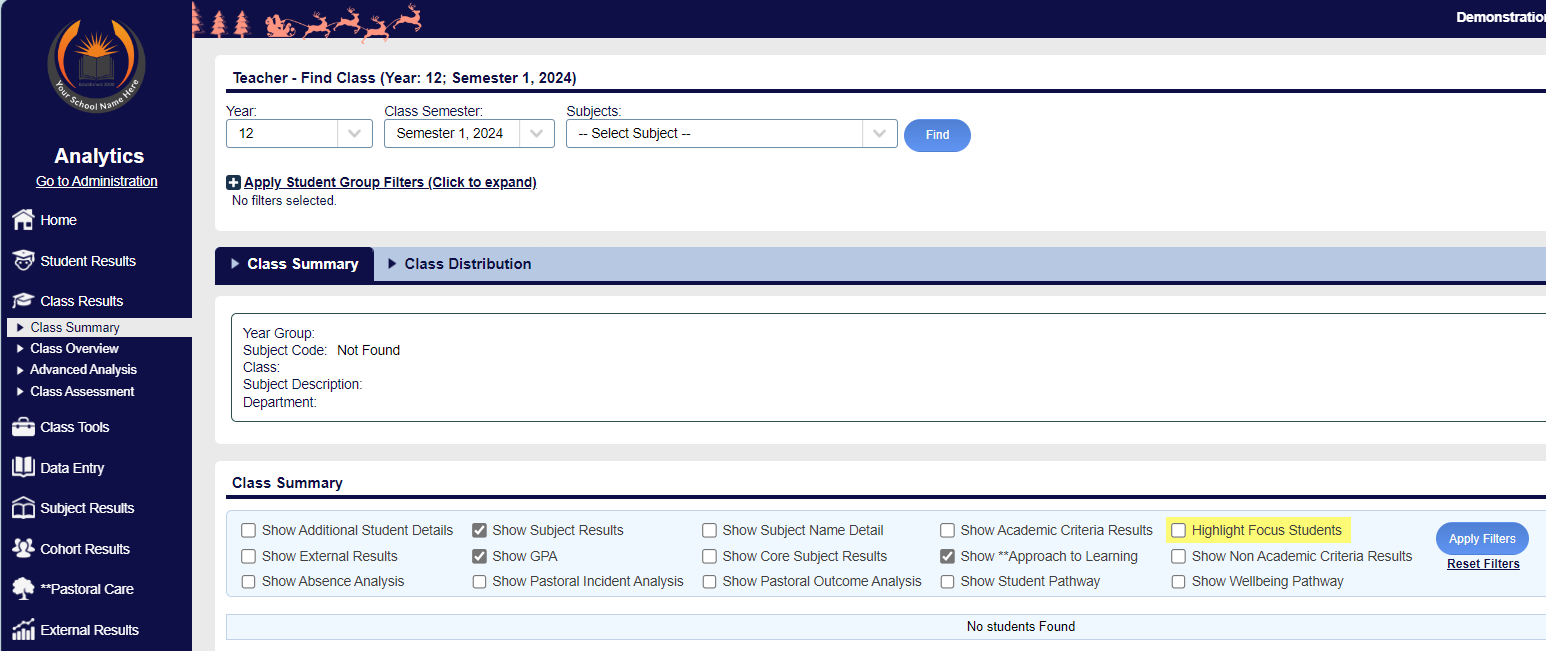

A very useful feature is checking the "Highlight focus students" filter. Focus students are students who meet predetermined criteria configured by your school in which to easily bring areas of concern to your attention. For example, they may have a high number of Absences or Incidents, or have a low subject result, or low overall GPA or approach to learning. The criteria used to identify focus students is shown in the orange section.

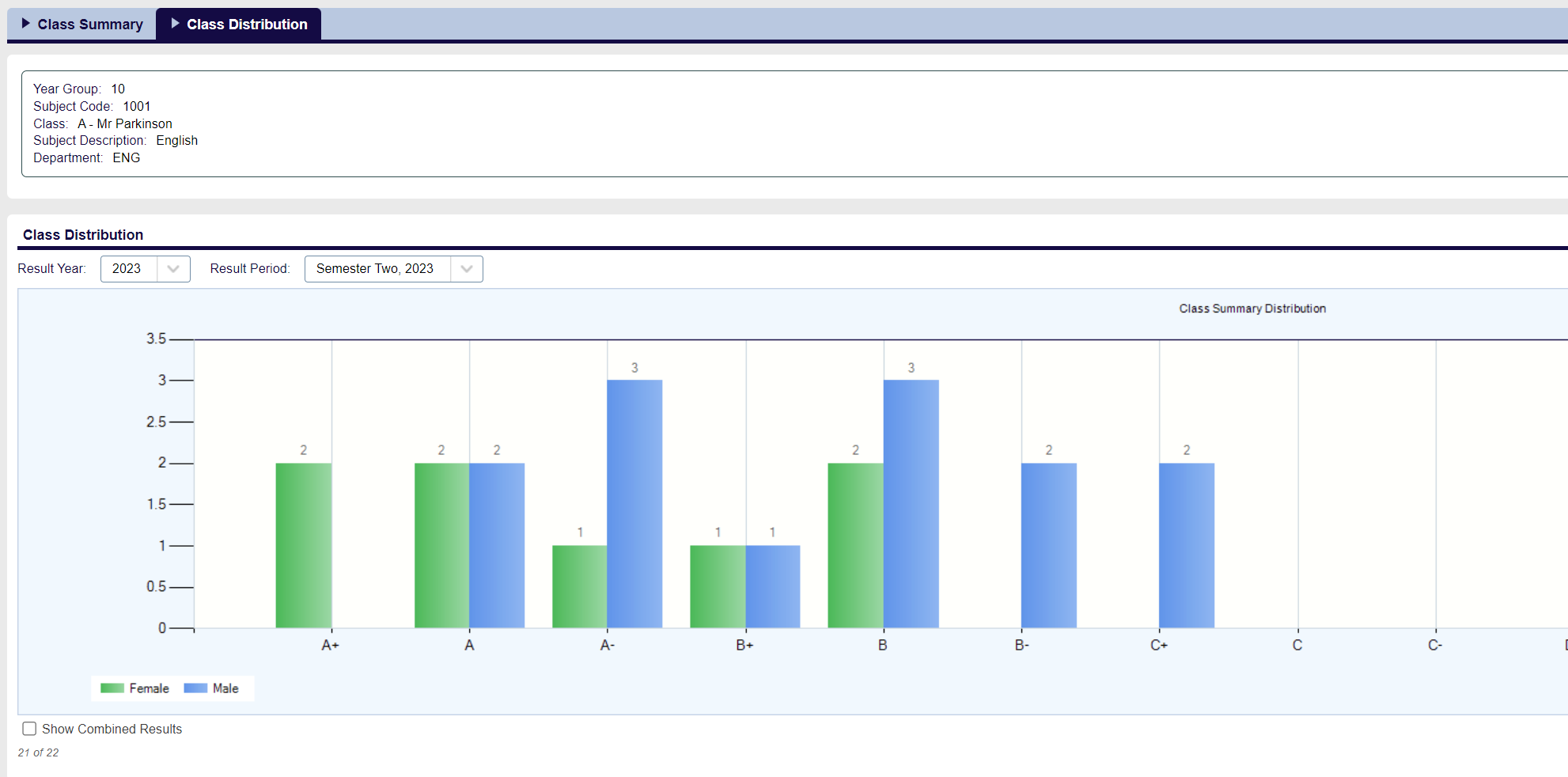

The second tab shows the Class Distribution of grades for the selected class by sex or combined.
Class Results - Class Overview
The Class Overview component is very similar to the Class Summary, in that it allows teachers to view a summary of data for students enrolled in their class. Unlike the Class Summary, it allows teachers to view their students’ progress in subjects against their progress in their subject.
The Class Distribution tab displays the same information as it does under Class Summary above.
Class Tools
You will use the Class Tools area to find class specific planning tools including placemats, Tasks/Alerts and Mentoring/Wellbeing.
Class Tools - Class Placemat

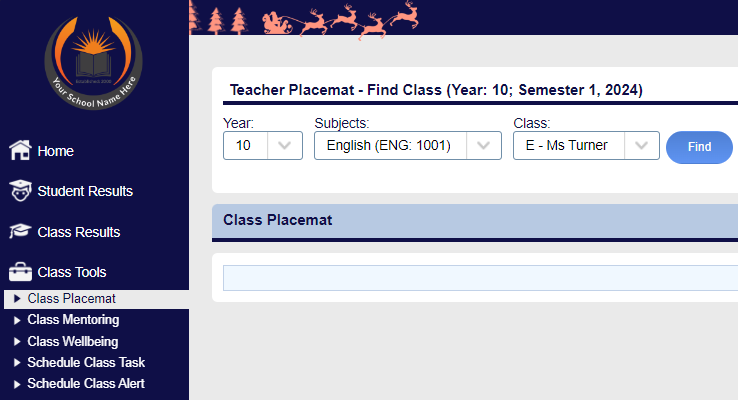

Click Class Tools to expand the menu and then click Class Placemat. Alternatively, you may use the Class Placemat button from the list of Quick Link icons.
The Class Placemat is a useful planning tool for teachers. It supports differentiation, and highlights student characteristics such as performance in external results, and focus students, making it easier for teachers to identify students' individual and unique challenges.
[1] The Overall and Criteria tabs allow teachers to plan at an overall level, or drill down to student strengths and weaknesses by criteria and target specific areas.
[2] The Target area allows teachers to set a goal for the breakdown of student results.
[3] The Class Distribution section distributes students based on their current results, grouping similar grades together as configured by the school. Teachers can see clearly where students sit within their class, and can plan appropriately.
[4] Class Detail/Student Detail tabs permit planning based on Grade Groupings or individually per student. The Class Details tab has pairs of text areas, usually used for identifying barriers for students in each group, and strategies for helping the students overcome them. The Student Details tab allow for individually targeted planning.
[5] The Class Averages section shows the number of students and class/subject averages.
[6] The Notes area allows teachers to enter free-format notes for a variety of purposes such as reminders, focus points, or whole class strategies or barriers.
[7] Focus Students are listed for both overall, and incidents with breakdown. These are students who meet school-defined criteria such as a high number of absences, or low grades, and are students the teacher should focus on.
[8] The External Heatmap shows at a glance the external results for students in the class, allowing for students' aptitude to be taken into consideration when planning.
