This document will guide you through the process of configuring the Learning Analytics Suite to authenticate via Azure AD (Office 365).

Azure Active Directory Admin Centre

Registering the Application

• To begin, navigate to the Azure Active Directory Admin Centre.

• Go to 'App Registrations'

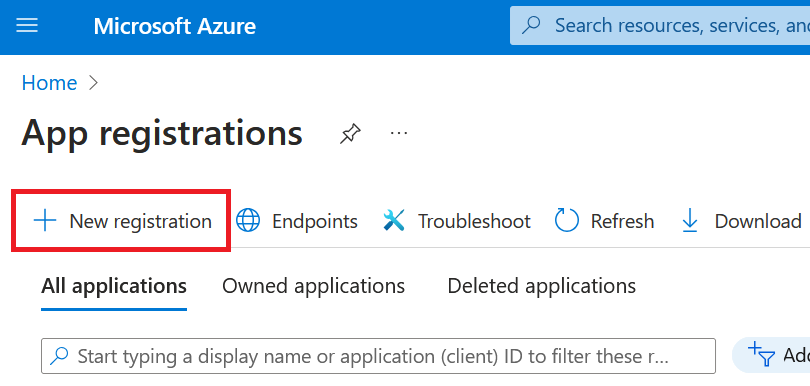

• Select '+ New Registration'

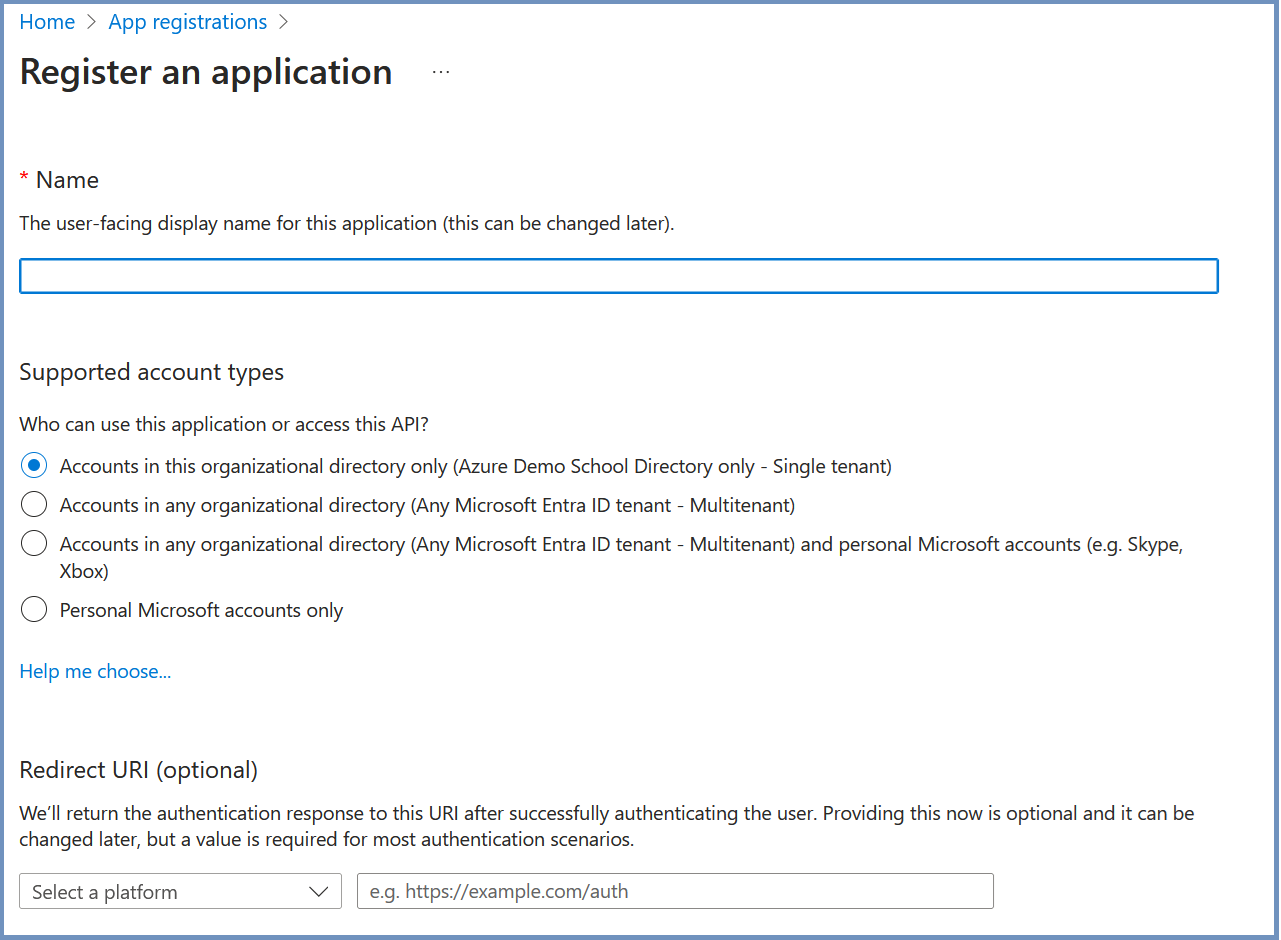

• Enter the application Name, Supported Account Types, and Redirect URI
  (e.g. https://[school domain]/LearningAnalytics/AuthServices/Acs)



• Click 'Register'.

Once the application is registered the following screen will appear (if not, click on the name of the newly registered app).

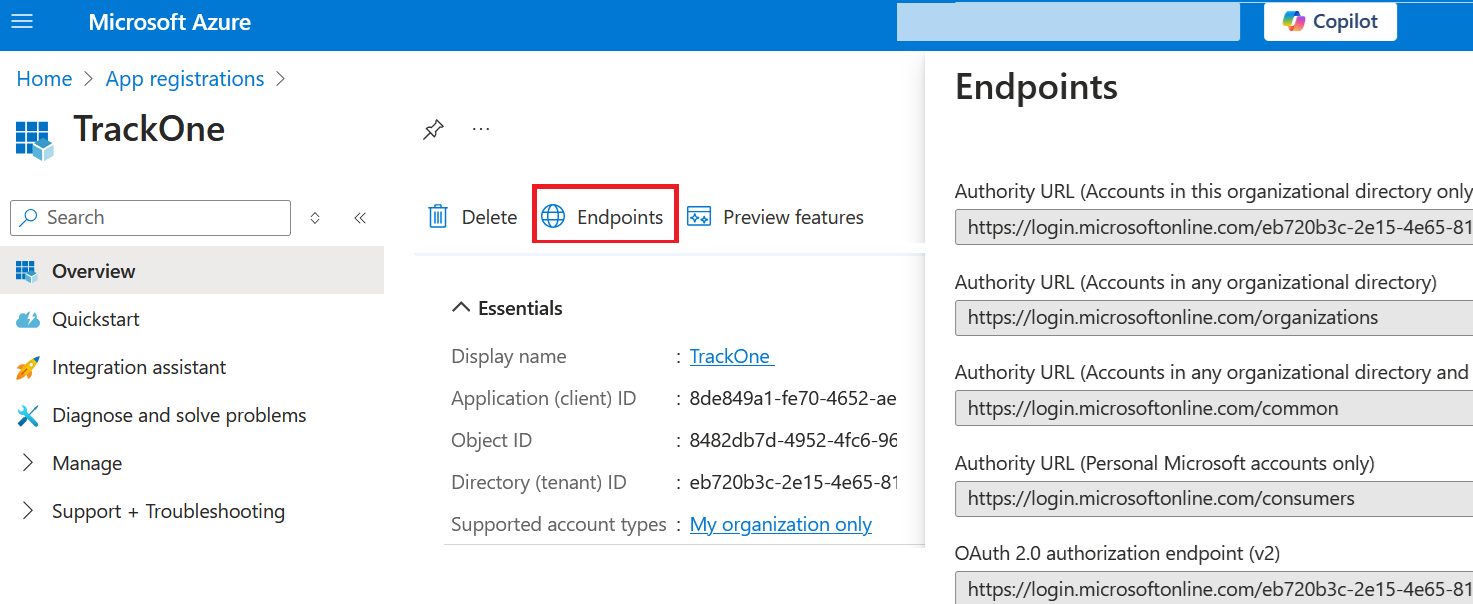

• Select 'Endpoints'

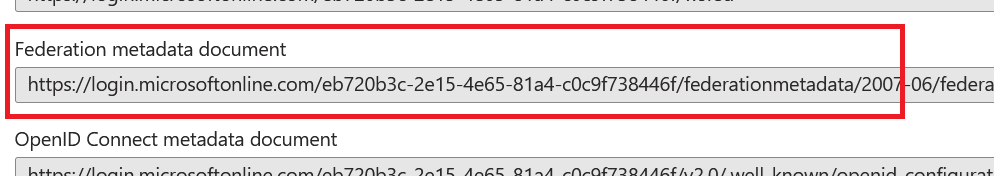

• Copy the 'Federation metadata document' address for use later.

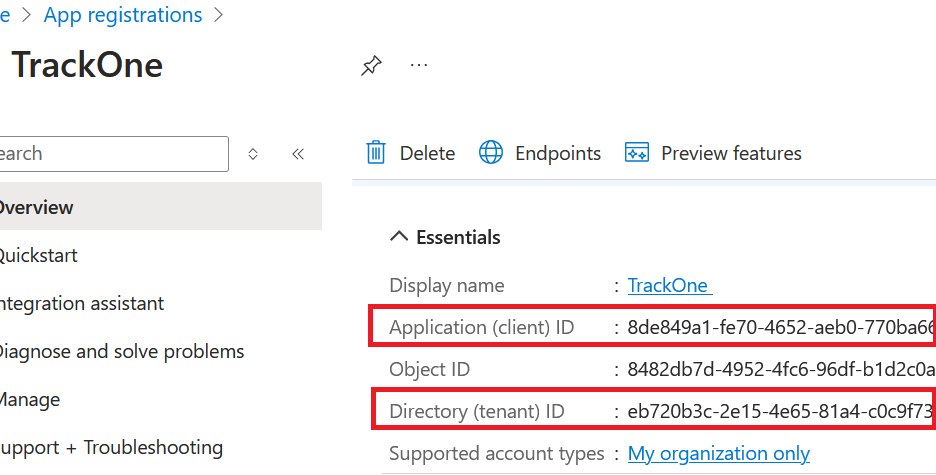

• Copy the 'Application (client) ID' and the 'Directory (tenant) ID' for use later.

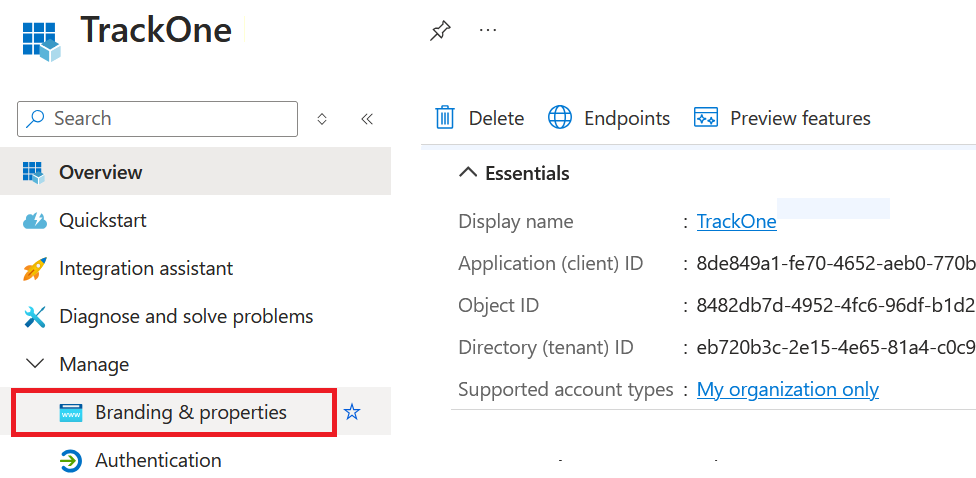

• Click 'Branding & Properties'

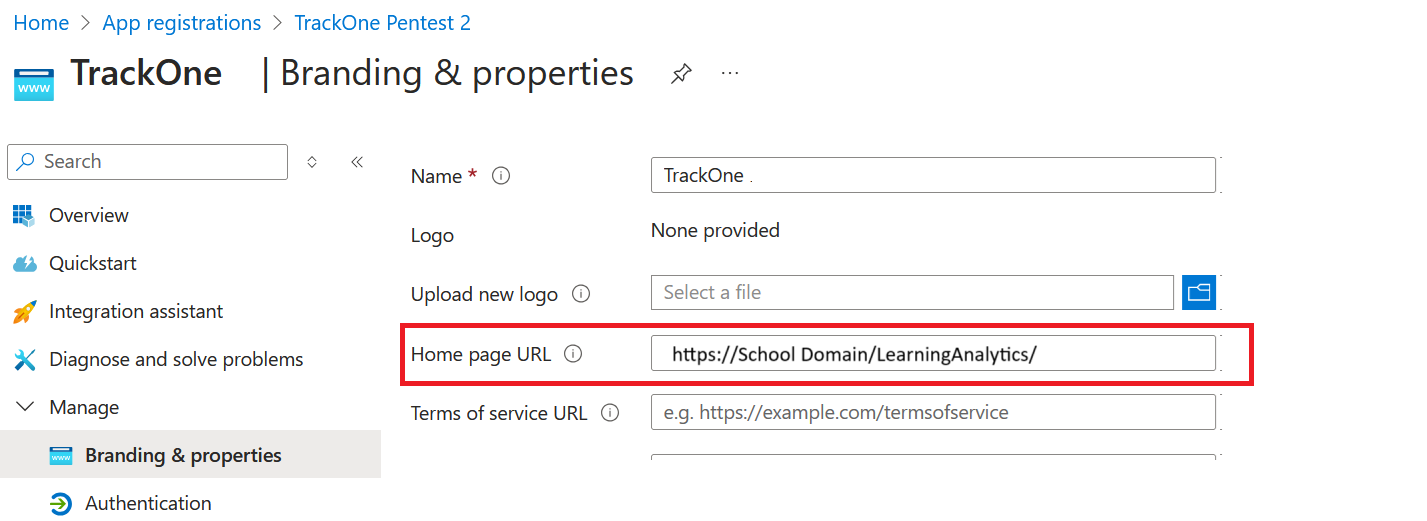

• Enter the Home page URL   e.g. https://[School Domain]/LearningAnalytics/
  You may also wish to upload a logo.

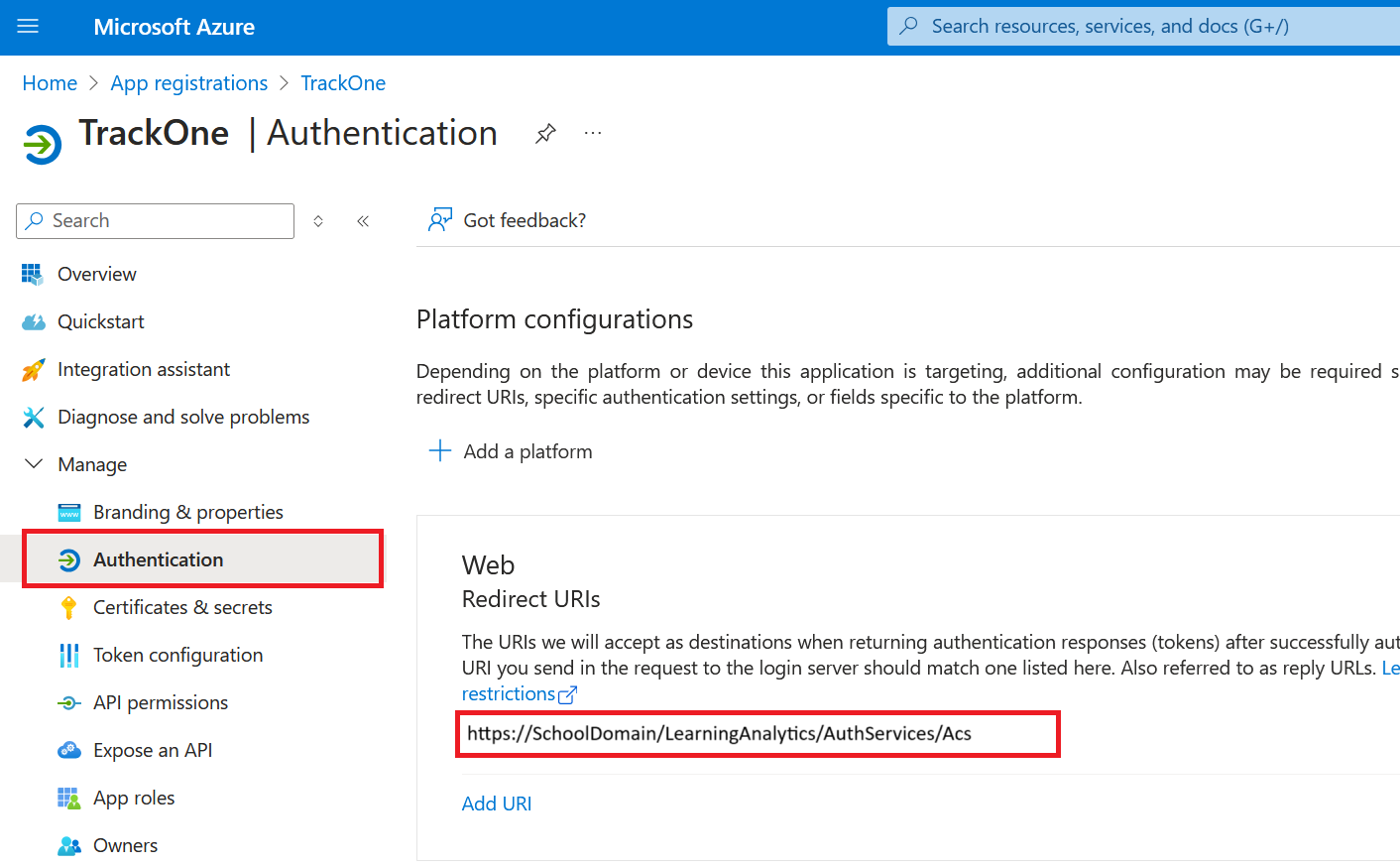

• Go to 'Authentication'
• Enter the Redirect URI    e.g. https://[School Domain]/LearningAnalytics/AuthServices/Acs



Assigning Users and Groups to the Application

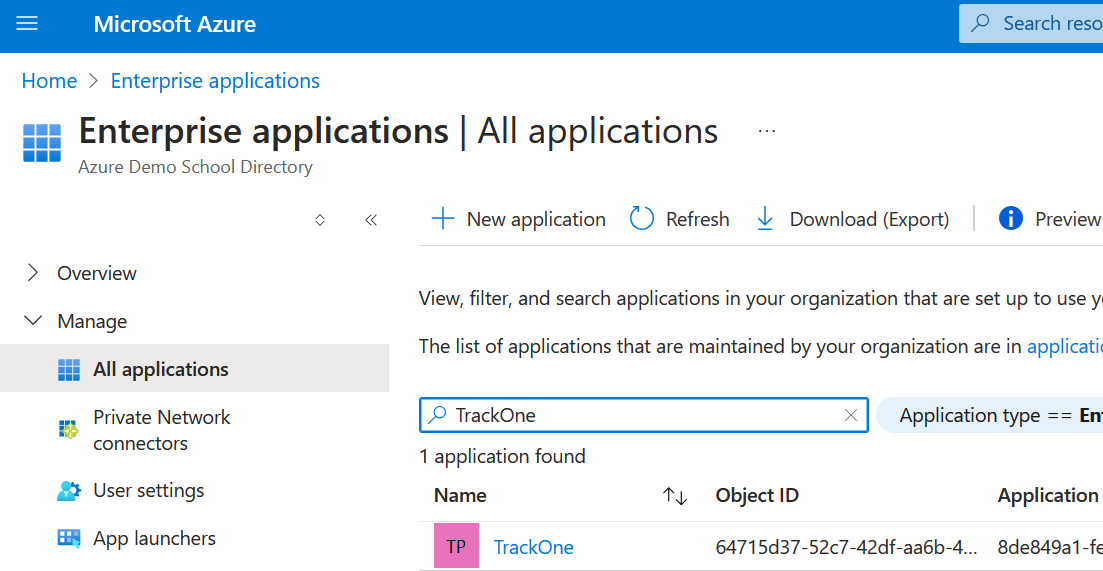

• Go to 'Enterprise Applications'.
• Select your Learning Analytics Suite application.

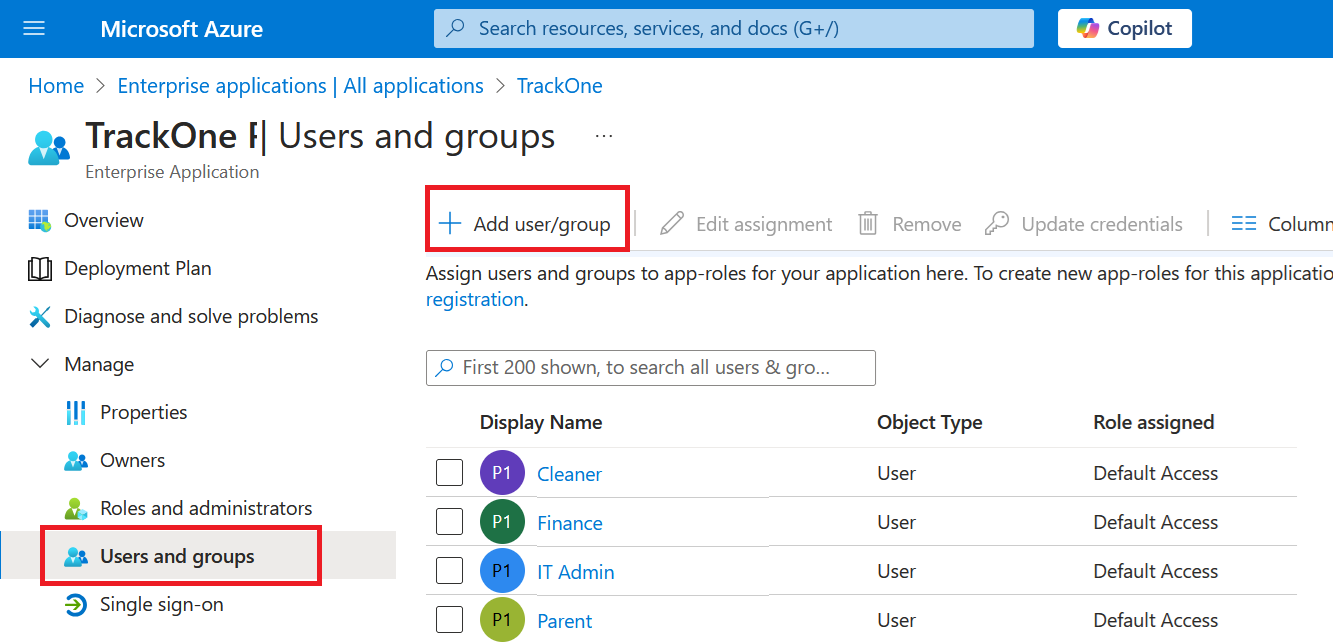

• Click Users and groups.
• Click Add user/group.





• Select the Users or groups which should have access to the application.
• Click Assign.

Learning Analytics Suite Administration

In the Learning Analytics Suite:

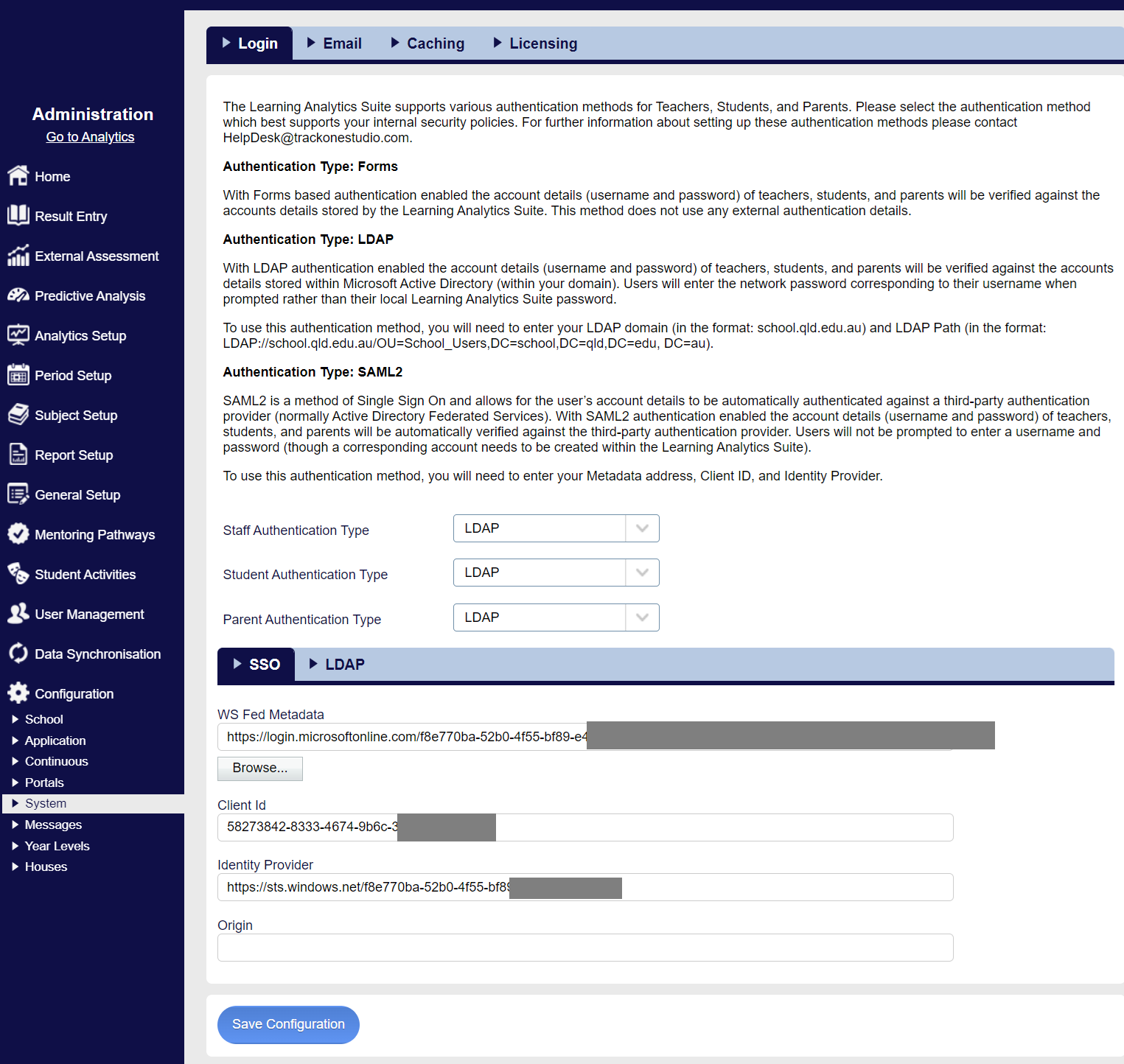

• Navigate to Administration > Configuration > System.
• Authentication Type - Select 'Single Sign On – SAML2'

• Using the information recorded earlier, enter the:
  • WS Federation Metadata document location
    eg https://login.microsoftonline.com/eb720b3c-2e15-4e65-81a4-c0c9f7384xp4/federationmetadata/2007-06/federationmetadata.xml


  • Client ID (Application (client) ID)
    eg 8de849a1-fe70-4652-aeb0-770ba6637xte


  • Identity Provider (Directory (tenant) ID) - this should be entered in the format: https://sts.windows.net/[Directory (tenant) ID/
    eg https://sts.windows.net/eb720b3c-2e15-4e65-81a4-c0c9f7384xp4/


• Click 'Save Configuration'.




• Navigate to Administration > User Management >Users.


• Ensure an account exists for each user in the correct format (e.g. email address).
  User accounts can be updated using the Bulk User Synchronise tool.
  Administration - User Management - Bulk Synchronisation for Students
  Administration - User Management - Bulk Synchronisation for Staff



• Exit the application by closing the browser.


• Recycle the application pool in IIS.


• Open a new browser window and navigate to the Learning Analytics Suite.



You should be directed to sign in via Azure AD if not already authenticated.
